Pioneer DM-40D-K Black (pair)
Product information “Pioneer DJ DM-40D”
With the Pioneer DJ DM-40D active monitor pair, you get speakers that are designed for both studio use and DJ sets alike.
The secret is the built-in DSP, which not only offers an extremely clear sound reproduction with a 96-kHz sampling frequency, but also adapts the frequencies to the specific application. A switch is built into the rear panel that allows you to quickly and easily switch between DJ or studio.
A Class-D amplifier is built in, delivering a real power of 19 watts per monitor, making it ideal for small to medium-sized studios or DJ setups.
Pioneer relies on an MDF enclosure with a bass-reflex design and grooved air ducts. Clever design tweaks make these speakers sound much larger than first impressions might suggest. The delay correction between the 4 inch woofer and the 3/4 inch tweeter ensures a pleasant sound image, while the DECO diffussors make the sound stage more three-dimensional.
Features Pioneer DJ DM-40D
• Active monitoring speaker set
• Class-D amplifier with 96 kHz sampling DSP

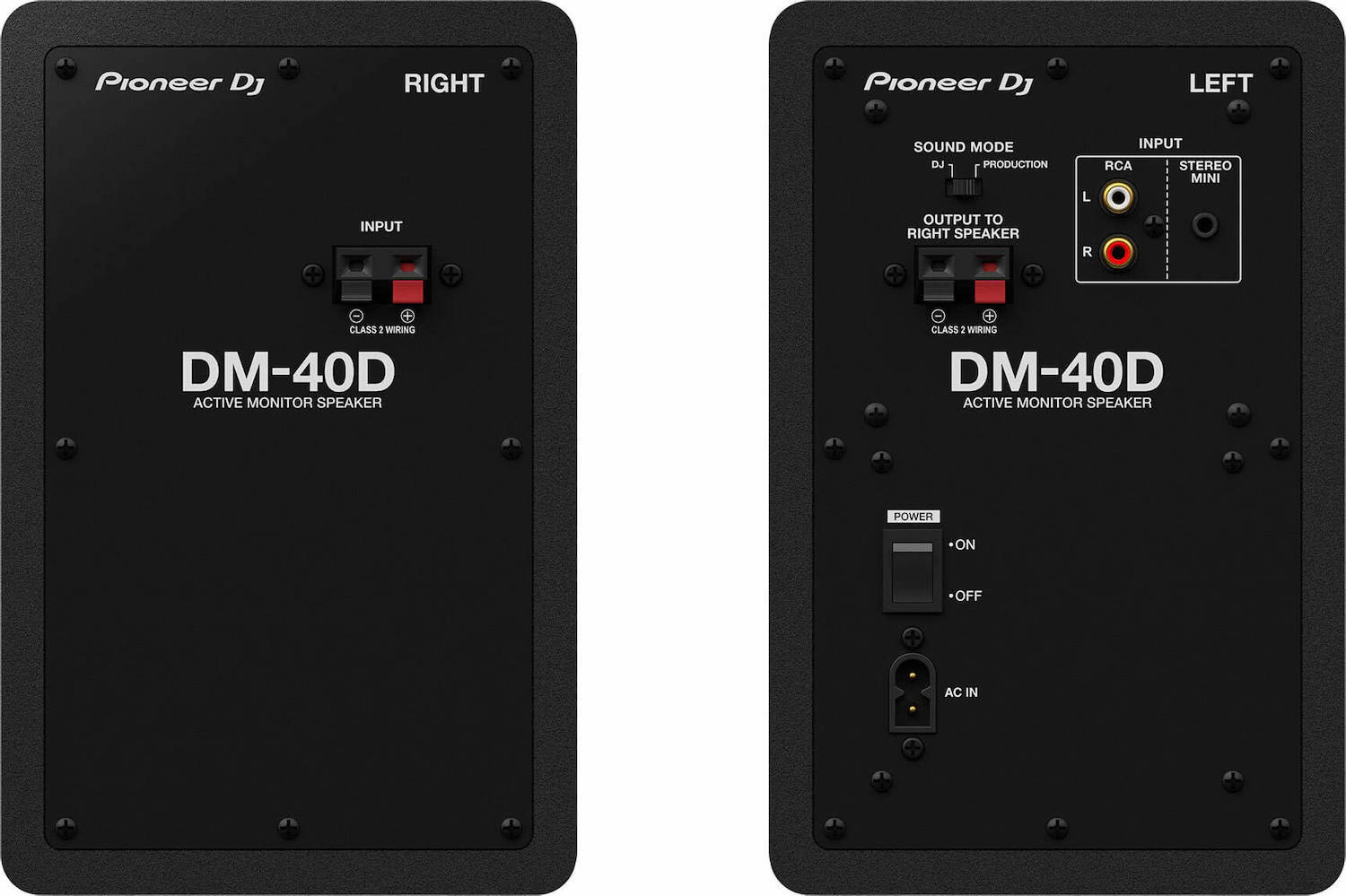

• Switchable between studio and DJ mode on the rear panel
• 4 inch woofer and 3/4 inch tweeter
• DECO convex diffuser for wide 3D setero sound
• Time correction of woofer and tweeter
• Grooved air ducts minimize air friction
• On/Off switch
Technical data
• Type: 2-way bass reflex active monitor speaker
• Cabinet material: MDF vinyl laminate
• Amplifier: Class D with DSP
• Woofer: 4 inch
• Tweeter: 3/4 inch soft dome tweeter
• Amplifier output power: 19 W / 4 Ω
• Impedance: 10 kΩ
• Power consumption: 20W
• Standby: 0.3 watts and less
• Inputs: 3.5 mm stereo jack | RCA
• Outputs: 3.5 mm stereo jack
• Weight: 2.5 kg (left) | 2.2 kg (right)
• Dimensions (W x H x D)
Lch: 146 x 227 x 223 mm
Rch: 146 x 227 x 212 mm
Scope of delivery
• Pioneer DJ DM-40D monitor pair
• Power cord
• Audio adapter cable (3.5 mm stereo jack to RCA)
• Speaker cable
• Stand feet
• Quick Start Guide
• Safety instructions
• Warranty conditions
Power RMS:
1 – 50 W
Diameter Woofer:
4 inch
Active/Passive:
Active
